Bally 5 Volt Regulator Section Repair Kit

This kit provides all of the parts you need to rebuild the 5-volt regulator section of a Bally Solenoid/Regulator Module AS-2518-22 or AS-2518-16 ONLY. Stern boards are similar but have differences, therefore this kit is not recommended for them. This kit is available with and without the 15,000uf capacitor. This is a limited stock kit as I’ve only recently come across a  small stash of original ST brand LM323Ks, which are HIGHLY faked from China. Once these are gone, I will provide the kit with an EZSBC PSU5 which requires a few easy board modifications.

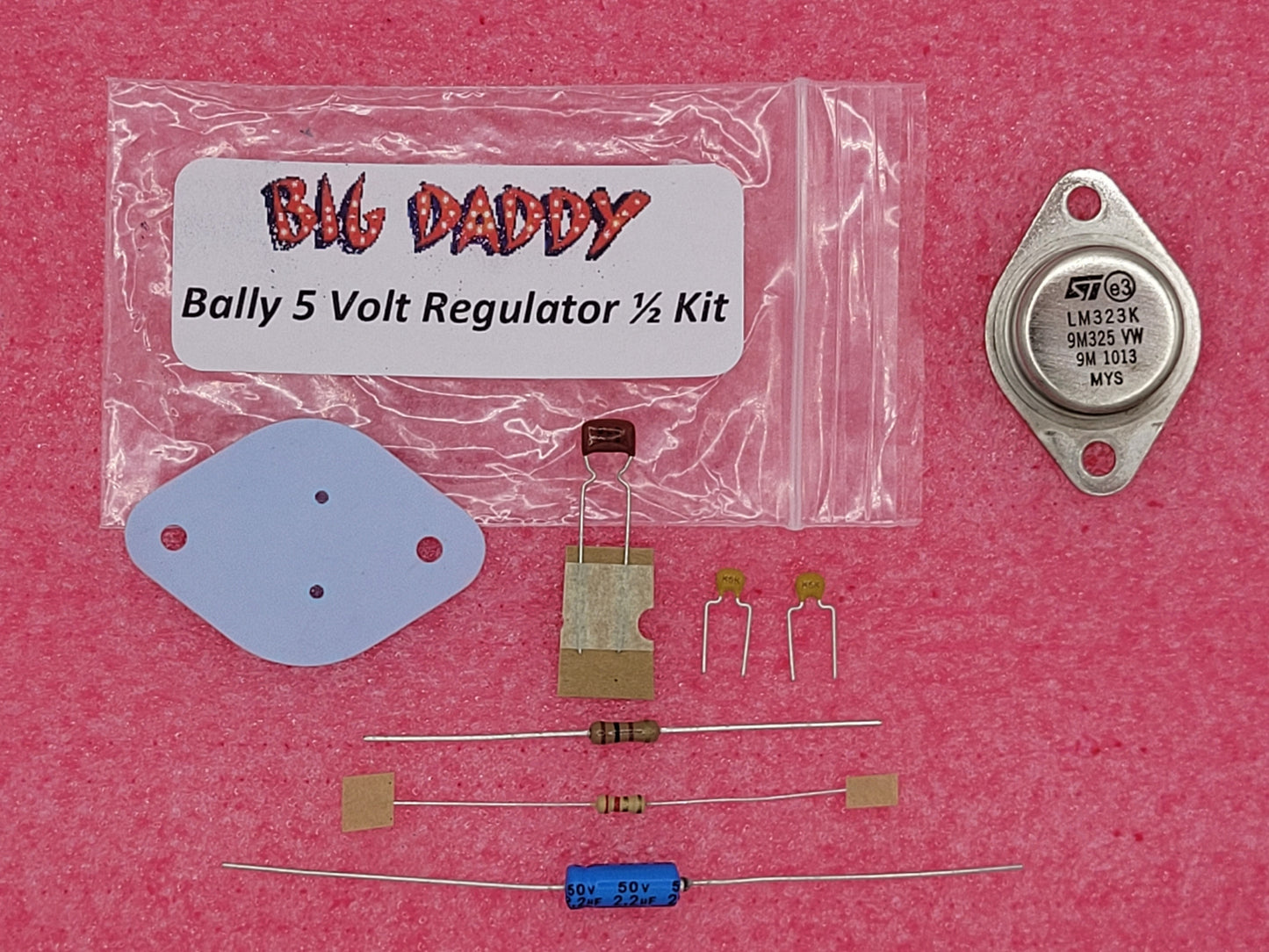

Half Kit Includes:

• (1) LM323K 5V Regulator – Sub for 7805
• (1) 2.2uF, 25V Electrolytic Capacitor to replace C24
• (2) 0.1uF 25V Ceramic Disk Capacitor (small yellow)
• (1) 0.01uF, 25V Ceramic Disk Capacitor (red)
• (1) 2.2 Ohm, 1/4 Watt Resistor
• (1) 100 Ohm, 1/2 Watt Resistor
• (1) Thermally Conductive Insulator for TO-3 devices

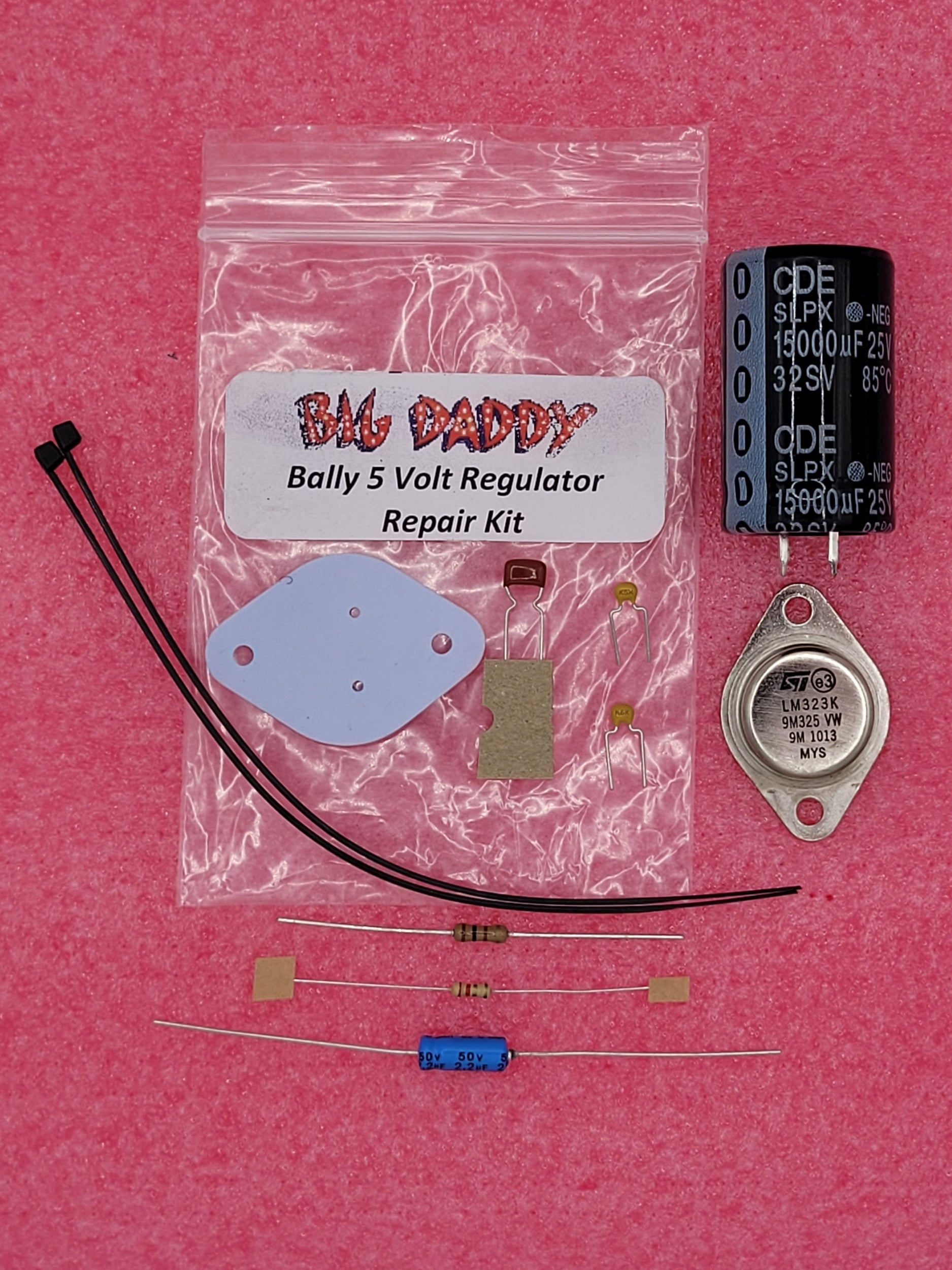

Full Kit Includes:

• Everything in the half kit
• (1) 15,000uF, 25 Volt Electrolytic Capacitor
• (2) Wire Ties to strap down the filter capacitor
