Bally AS-2518-49 Power Supply Kit

The VARO Dual Diodes originally used on the AS-2518-49 Rectifier Modules are no longer available, so this kit is actually the same kit as the AS-2518-18 kit except for the 2 extra high-current fuse clips and a third bridge. By retrofitting a standard bridge in place of the two VARO dual-diodes you can easily replace the VARO duals with a much better MODERN bridge rectifier. Of course if there is nothing wrong with the controlled lamps on your machine, then you may just want to leave the dual diodes along and keep the extra bridge rectifier as a spare. This kit provides all the parts you need except the fuses and headers to rebuild your Bally AS-2518-49 Rectifier Board assembly. Please note that the bridges are mounted on the front.

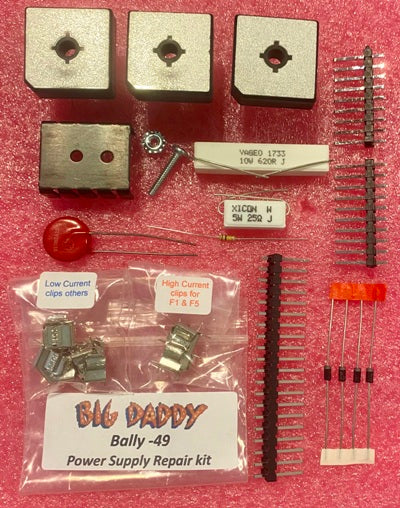

Includes:

• (4) IN4007 Diode (better than the factory 1N4004)
• (3) Bridge Rectifiers w/ Wires (minimum 200V 35A)
• (1) Heat Sink w/Mounting Hardware & heat sink grease(for BR1)
• (1) 100 Volt MOV
• (1) 25-27 Ohm, 5 Watt Resistor
• (1) 600-620 Ohm, 10 Watt Resistor
• (1) 100K Ohm, 1/4 Watt Resistor
• (4) High Current Fuse Clips (for F5)
• (8) Low Current Fuse Clips for all others

Used in the following games:  Future Spa, KISS, Space Invaders
