Bally/Williams WPC Power/Driver Board General Illumination (GI) Connector Repair Kit

This is a connector kit to repair the often damaged General Illumination (GI) section on the WPC89 and WPC95 Power/Driver boards. Over long periods of time, both the male and female connectors at J120 & J121 or J105 & J106 often burn. When doing this repair, you should replace both the male header pins and the female housings/pins. Damage is more common on the WPC89 board but this kit will also work for WPC95 boards. Superior Trifurcon crimps are better than factory original.  Soldering, desoldering and crimping required.

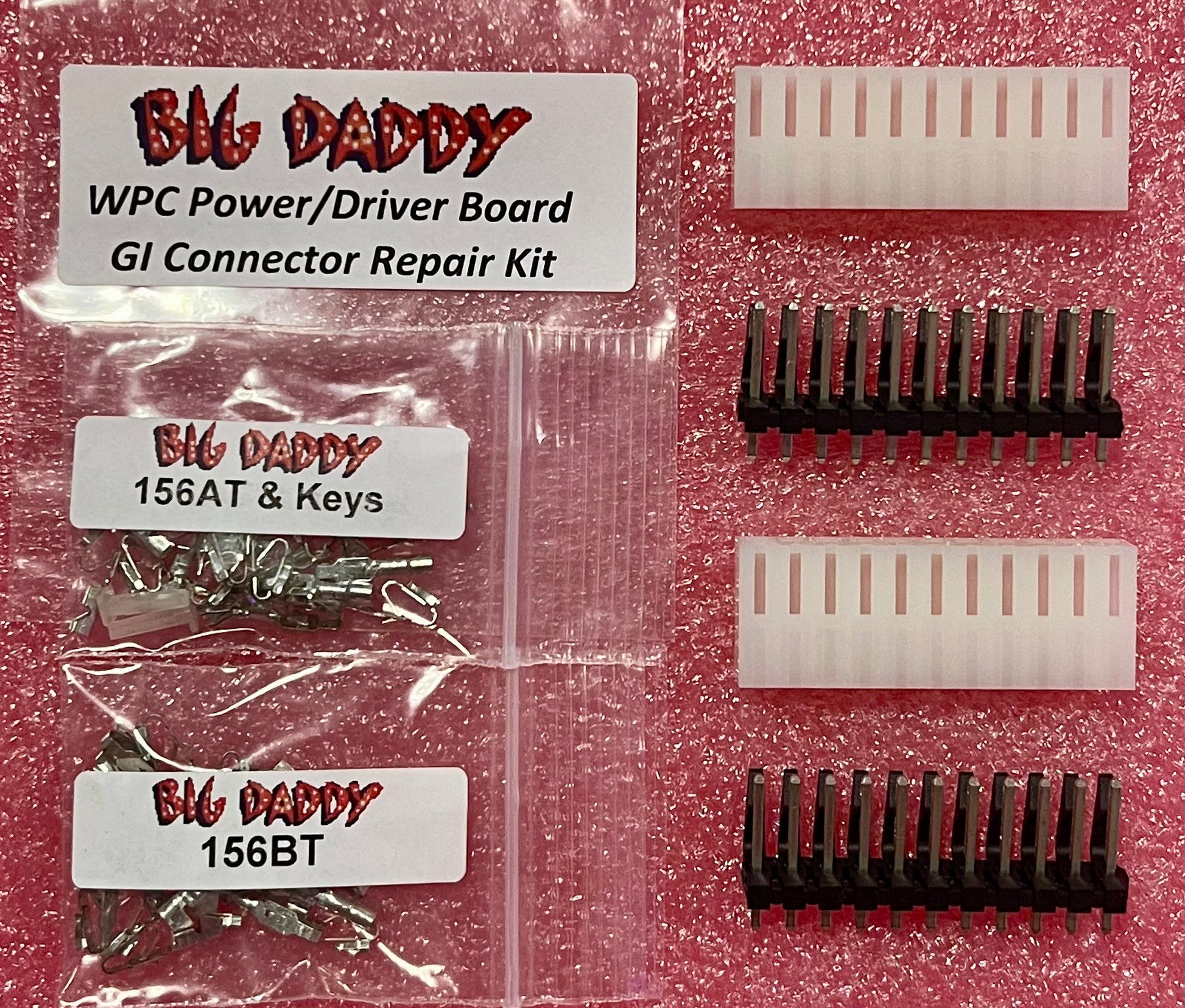

Includes:

• (2) 11 pin .156 housings (for J120/J121 or J105/J106)
• (2) 11 pin .156 headers with locking ramp (for J120/J121 or J105/J106)
• (2) Connector Keys for .156 Housings
• (20) 156AT Trifurcon Phosphor Bronze Tin, 7 Amp crimps for smaller wires
• (20) 156BT Trifurcon Phosphor Bronze Tin, 7 Amp crimps for larger wires

Used on the following Power/Driver boards:

• Williams WPC-89 & WPC-S boards A-12697-1, A-12697-3, A-12697-4
• Williams WPC-95 boards A-20028
