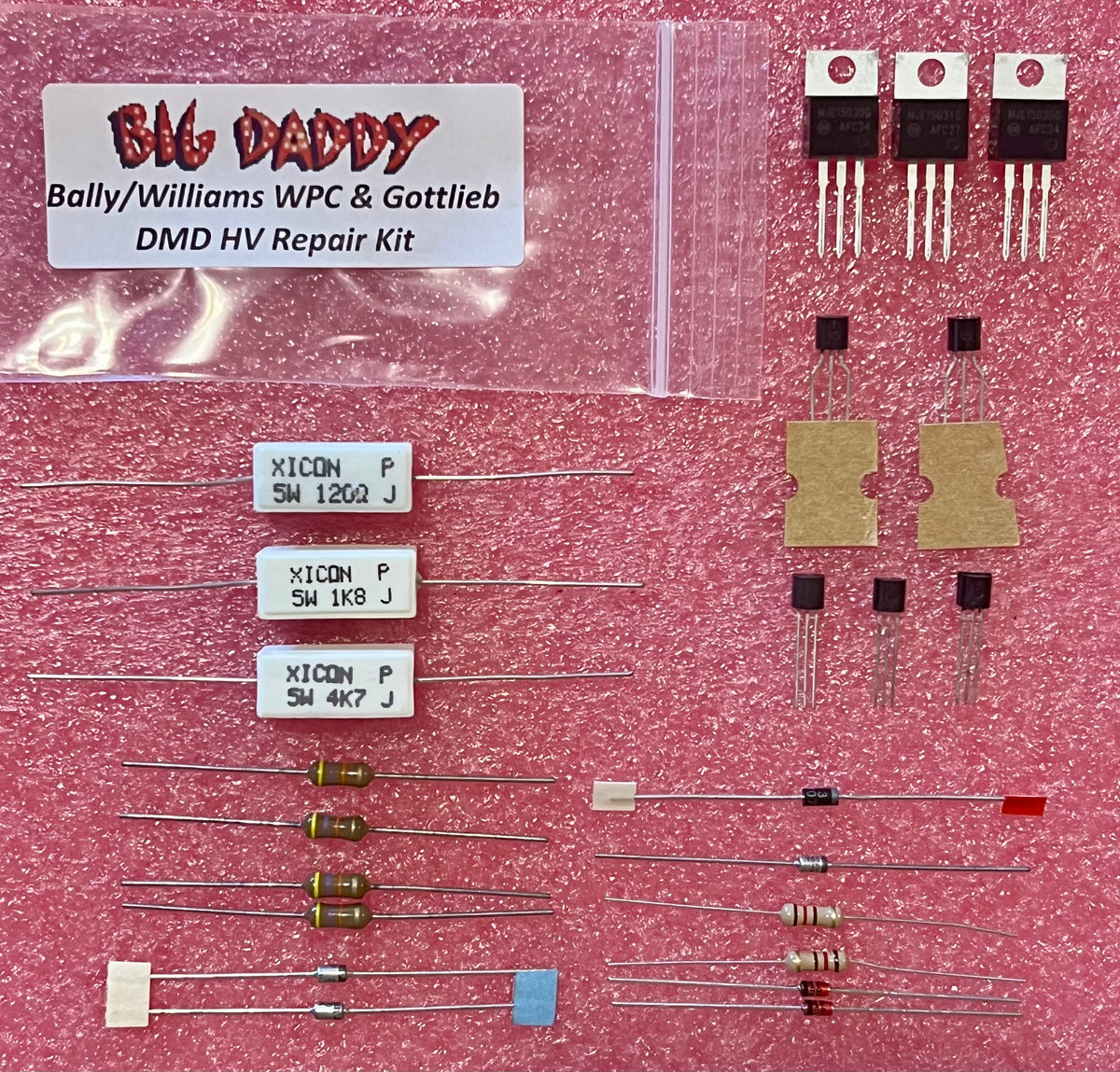

Bally/Williams WPC89/S DMD High Voltage Repair Kit

Bally/Williams WPC89/S DMD High Voltage Repair Kit

$19.95
$19.95
Sale Sold out
Shipping calculated at checkout.
This kit contains all of the components needed to rebuild the high voltage section on Bally/Williams WPC-89 and WPC-S Games.  Please note, at this time this kit is not intended for WPC95 and Gottlieb System 3.  Once we have documented component placement, we will update this listing!

Kit Includes:

  • (4) 47K 1/2W Resistors for R3, R6, R12, R13
  • (2) 120 ohm 1/2W Resistors for R4, R5
  • (1) 4.7K 5W Resistor for R8
  • (1) 1.8K 5W Resistor for R9
  • (1) 120 ohm 5W Resistor for R11
  • (1) 2N3904 Transistor for Q1
  • (2) 2N5551 Transistors for Q2, Q10
  • (2) 2N5401 Transistors for Q4, Q5
  • (2) MJE15030 Transistors for Q3, Q7
  • (1) MJE15031 Transistor for Q6
  • (1) 1N4759 Zener Diode for D3
  • (2) 1N4758 Zener Diodes for D4, D5
  • (2) 1N4742 Zener Diodes for D6, D8
  • (1) 1N4007 Rectifier Diode for D7
