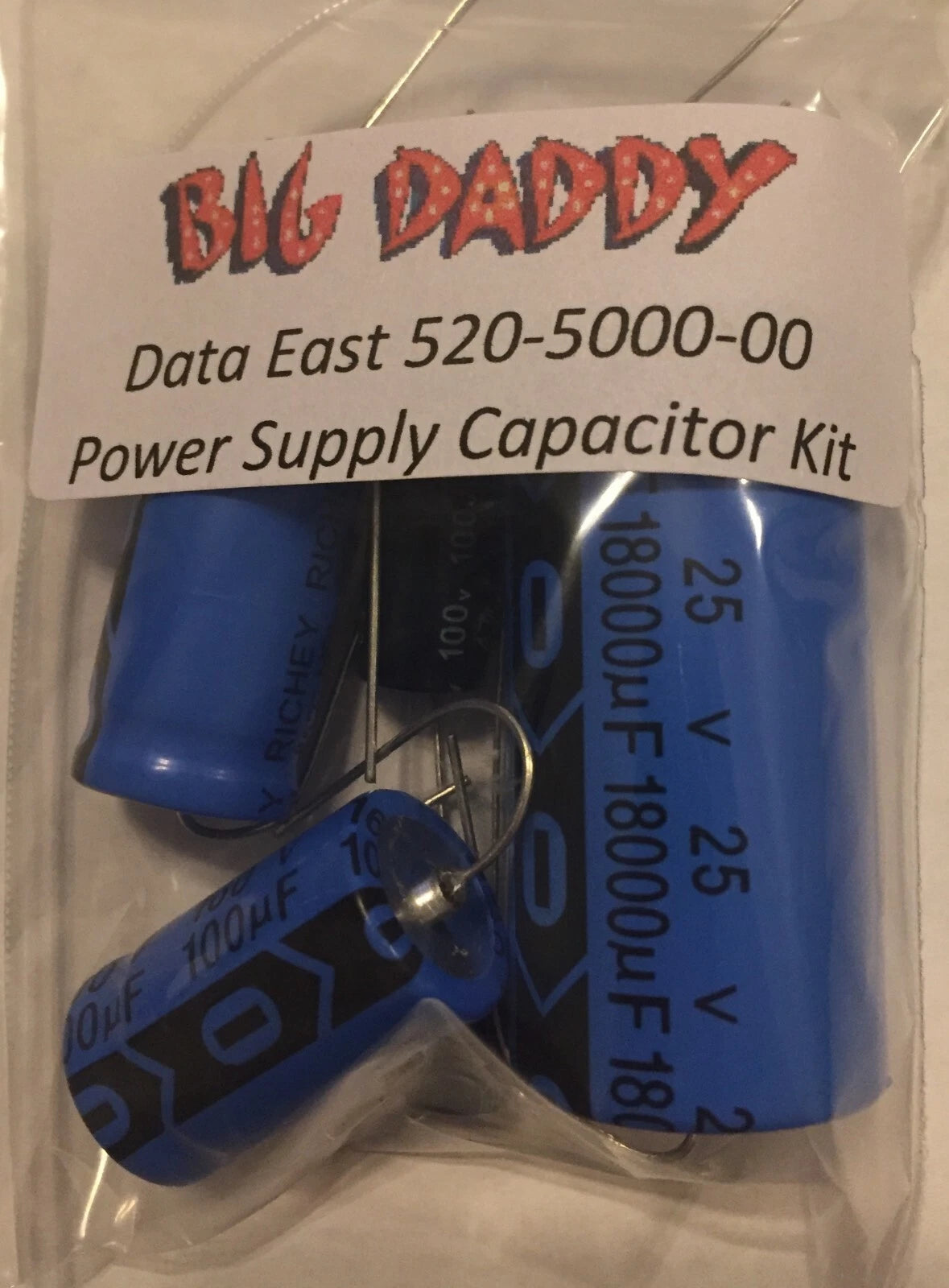

Data East Power Supply Capacitor Kit For Board 520-5000-00
Data East Power Supply Capacitor Kit For Board 520-5000-00
Couldn't load pickup availability
This kit contains all of the electrolytic caps on a Data East 520-5000-00 Power Supply board. the board part number is often covered by a sticker under CN5 and CN6.
Used in the following games: Back To The Future, Laser War, Monday Night Football, Phantom Of The Opera, Playboy, Robocop, Secret Service, The Simpsons, Time Machine, Torpedo Alley.
Includes:
- (1) 1,000uf/25V radial cap for C1 (Note 1)
- (1) 100uf/50V HIGH TEMP radial cap for C2 (Note 1,3)
- (1) 47uf/100V HIGH TEMP radial cap for C3 (Note 1,3)
- (1) 18,000uf/25V axial cap for C4
- (1) 330uf/50V HIGH TEMP radial cap for C7 (Note 1)
- (1) 150uf/100V axial cap for C8 (Note 2)
- (2) 100uf/160V axial cap for C10 & C11 (Note 2)
- (1) zip tie for C4
Note 1: All boards examined are designed to take a radial or axial at this location. In low stock situations a sub might be made.
Note 2: This is the proper axial cap, the Data East board is *not* designed to take a radial cap here, like the copycat sellers are selling.
Note 3: It is critical that these caps, especially C2, are HIGH TEMP caps, the copycats do not provide (and use cheap caps).
