Data East Power Supply Capacitor Repair Kit For Boards 520-5047-00/-01/-02

This kit contains all of the electrolytic caps on the Data East power supply board
520-5047 version 00 through 02.

Used in the following games: Batman, Checkpoint, Guns N' Roses, Hook, Jurassic Park, Last Action Hero, Lethal Weapon 3, Rocky and Bullwinkle, Star Trek 25th Anniversary, Star Wars, Tales From The Crypt, Teenage Mutant Ninja Turtles, The Who's Tommy, WWF Royal Rumble

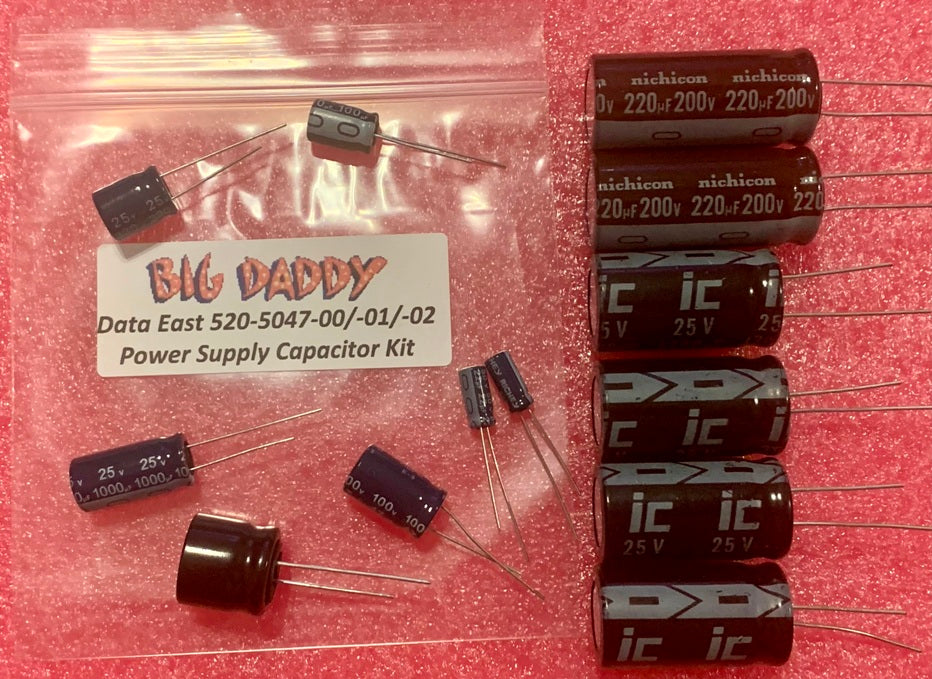

Includes:

• (1) 1,000uf/25V HIGH TEMP radial cap for C1
• (1) 100uf/50V HIGH TEMP radial cap for C2 (Note 1)
• (1) 47uf/100V HIGH TEMP radial cap for C3
• (4) 4,700uf/25V HIGH TEMP radial cap for C4 (Maker may vary) (Note 2)
• (1) 330uf/25V HIGH TEMP radial cap for C7 (Note 3)
• (1) 150uf/100V HIGH TEMP radial cap for C8
• (2) 220uf/200V HIGH TEMP radial cap for C10 & C11 (Note 4)
• (2) 22uf/50V HIGH TEMP radial cap for C14 & C15

Note 1: It is critical that this C2 is a HIGH TEMP cap. Copycat kits may not contain this type (and use cheap caps).

Note 2: All boards examined are designed to take a single 18,000uf axial or (4) smaller 4,700uf radial caps at this location.

Note 3: Schematics show 25V but 16V has been seen on many boards.

Note 4: Some boards may have 100uf or 150uf caps here, 220uf is preferred and an improvement.
