Gottlieb System 1/One Power Supply

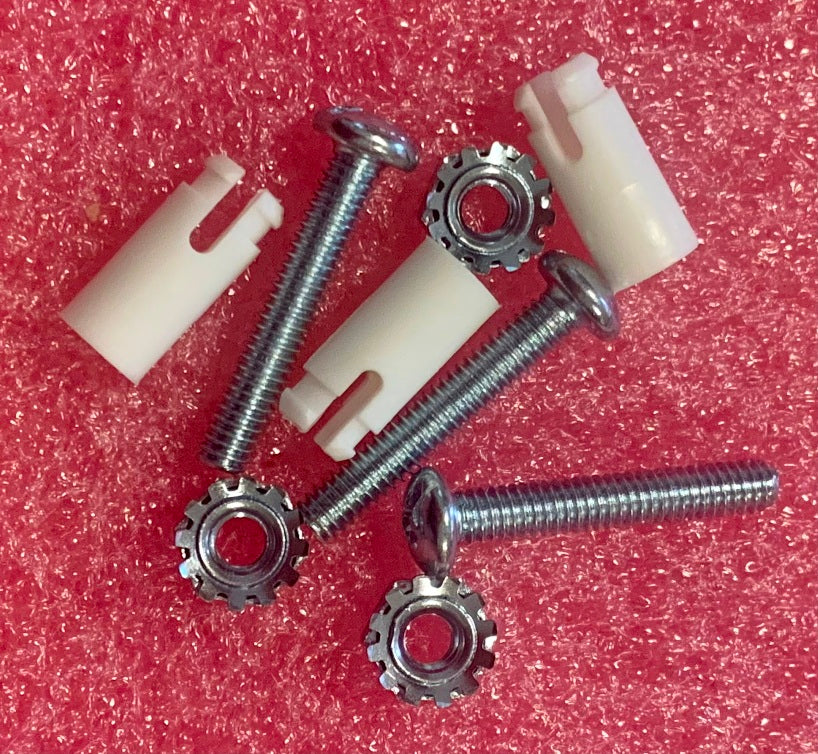

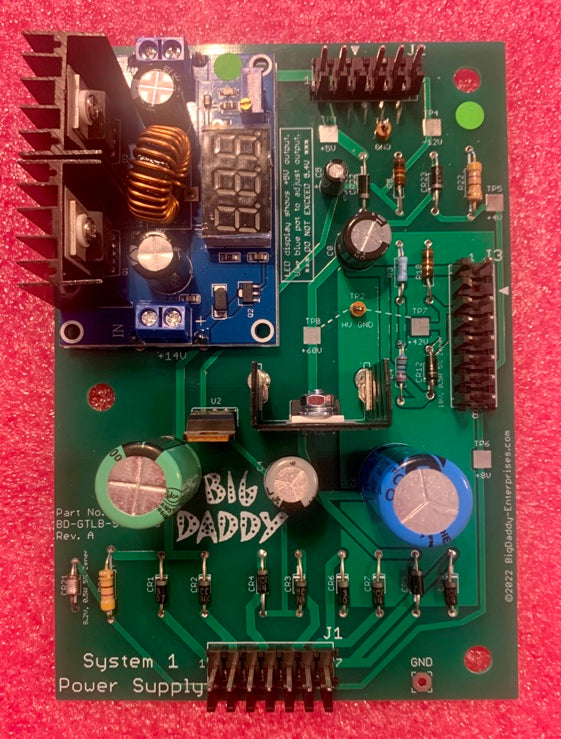

This is a newly designed and manufactured direct plug in replacement for the original hard to fix Gottlieb System 1 power supply board A2. Installation is simple, and comes with new mounting hardware to the OEM bracket (not included). Each board is game tested in Big Daddy's personal Sinbad.

Features:

• Quick and simple installation (See note 1)
• Quality parts used throughout
• Adjustable 5 Volt with readout
• Heatsink on voltage regulator has a proper thermal pad insulator, other makers use nothing
• Test point loops connectors for grounds, test pads for all voltages
• Ground solder point for optional ground mod wire
• All through hole readily available parts used on main board
• 2 year manufacturer warranty
• Warranty void if your game causes failure

(Note 1):  OEM board will need to have 6 screws removed and the TO3 transistor either desoldered or broken off with pliers. New board requires no soldering

Used in the following games:  Asteroid Annie, Buck Rogers, Charlie's Angels, Cleopatra, Close Encounters, Count Down, Dragon, Genie, Hulk, Joker Poker, Pinball Pool, Roller Disco, Sinbad, Solar Ride, Torch, Totem
