Gottlieb System 80 Pop Bumper Driver Kit

This kit includes all the parts you need to completely rebuild a Gottlieb System-80 Pop Bumper Driver Board, including upgraded parts and parts to fix errors on early boards.

Please click here for details on upgrading your original board.

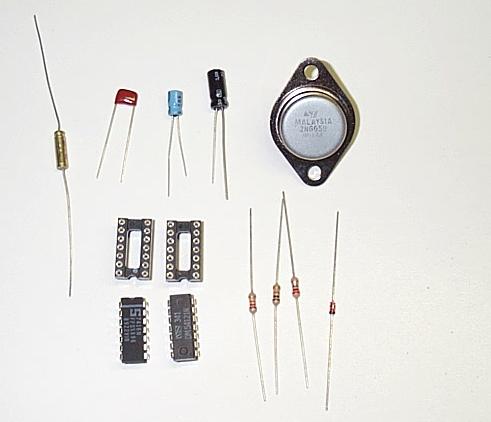

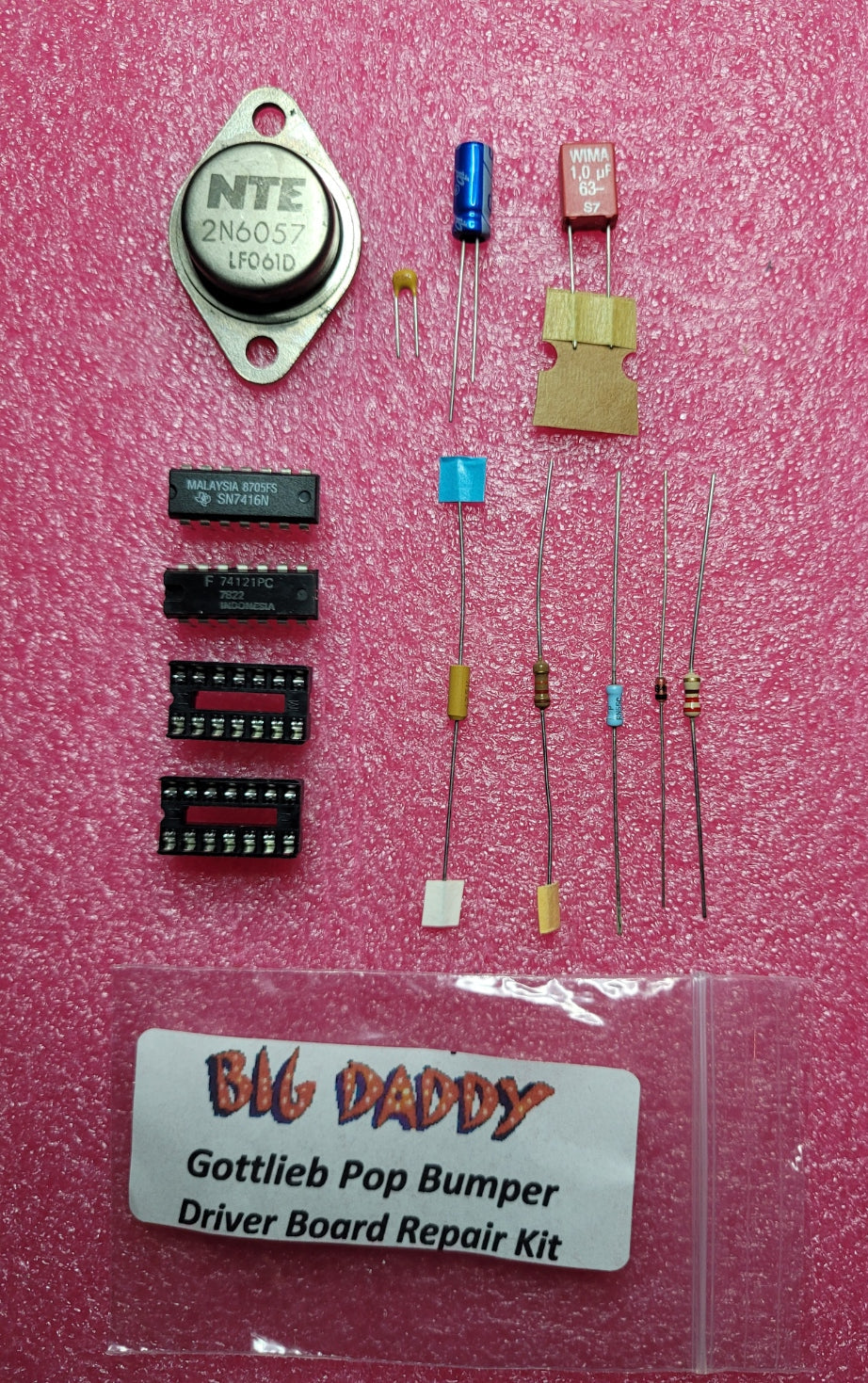

1 Pack Includes:

• (1) 1uF, 63V Non-Polarized Capacitor (red) (C1)
• (1) 0.01uF 25V Ceramic Capacitor (small yellow radial) (C2)
• (1) 4.7uF, 10-20V Tantalum Capacitor (yellow, tapered end “+”) (C3)
• (1) 47uF, 16V Electrolytic Capacitor (C4)
• (1) SN74121N Multi-Vibrator IC (NOS) (Z1)
• (1) SN7416N Hex Inverter IC (Tested NOS) (Z2)
• (1) 1N4148 Diode (CR1)
• (1) 2N6057 or 2N6059 Transistor (substitute for PMD10K60) (Q1)
• (1) 10K Ohm, 1/4 Watt Resistor (light blue) (R1)
• (1) 12K Ohm, 1/4 Watt Resistor (R2)
• (1) 220 Ohm, 1/4 Watt Resistor (R3)
• (2) DIP-14 Machined IC Socket

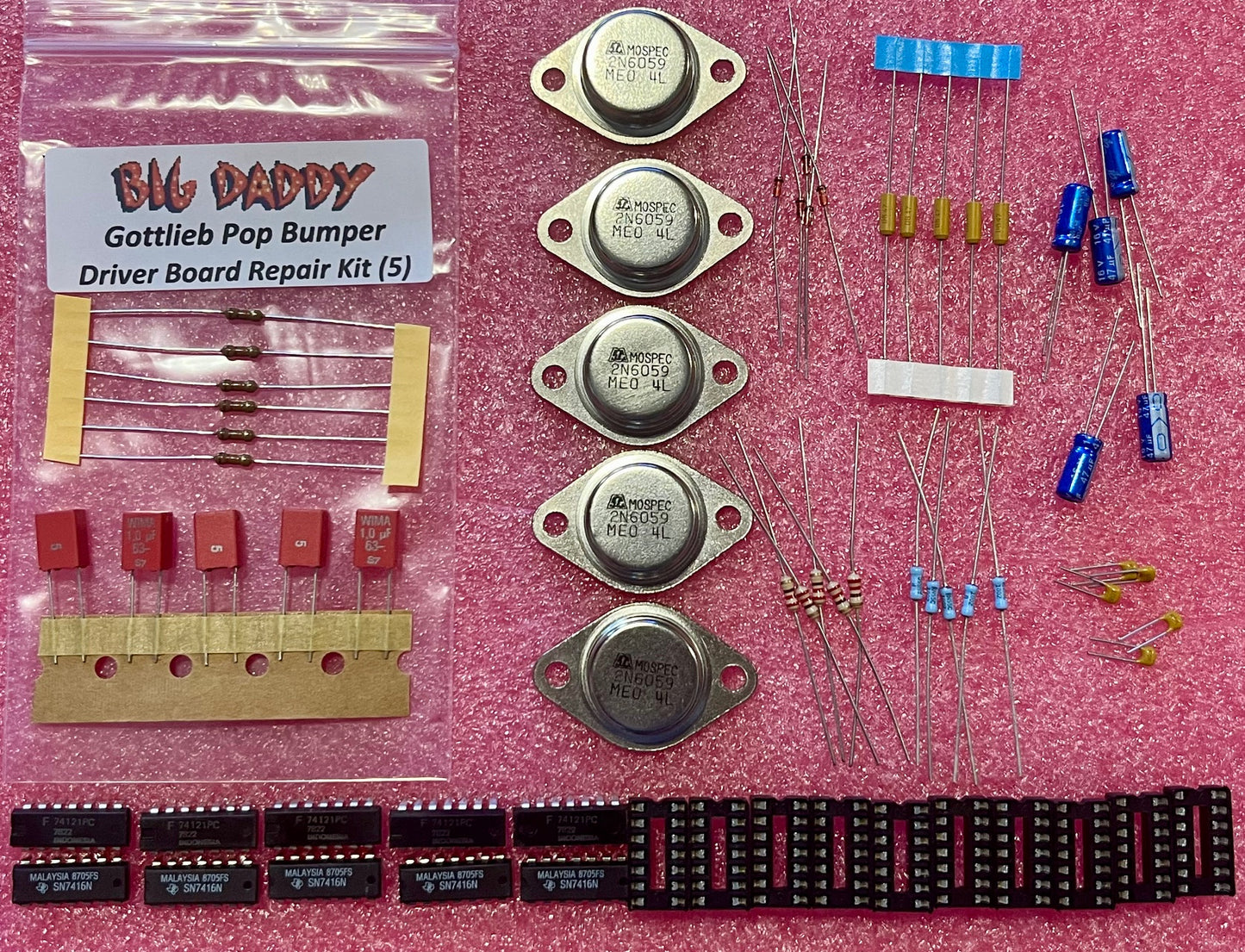

5 Pack Includes:

• (5) 1uF, 63V Non-Polarized Capacitor (red) (C1)
• (5) 0.01uF 25V Ceramic Capacitor (small yellow radial) (C2)
• (5) 4.7uF, 10-20V Tantalum Capacitor (yellow, tapered end “+”) (C3)
• (5) 47uF, 16V Electrolytic Capacitor (C4)
• (5) SN74121N Multi-Vibrator IC (NOS) (Z1)
• (5) SN7416N Hex Inverter IC (Tested NOS) (Z2)
• (5) 1N4148 Diode (CR1)
• (5) 2N6057 or 2N6059 Transistor (substitute for PMD10K60) (Q1)
• (5) 10K Ohm, 1/4 Watt Resistor (light blue) (R1)
• (5) 12K Ohm, 1/4 Watt Resistor (R2)
• (5) 220 Ohm, 1/4 Watt Resistor (R3)
• (10) DIP-14 Machined IC Socket
