Stern Cap Kit For SB-100 Sound Board

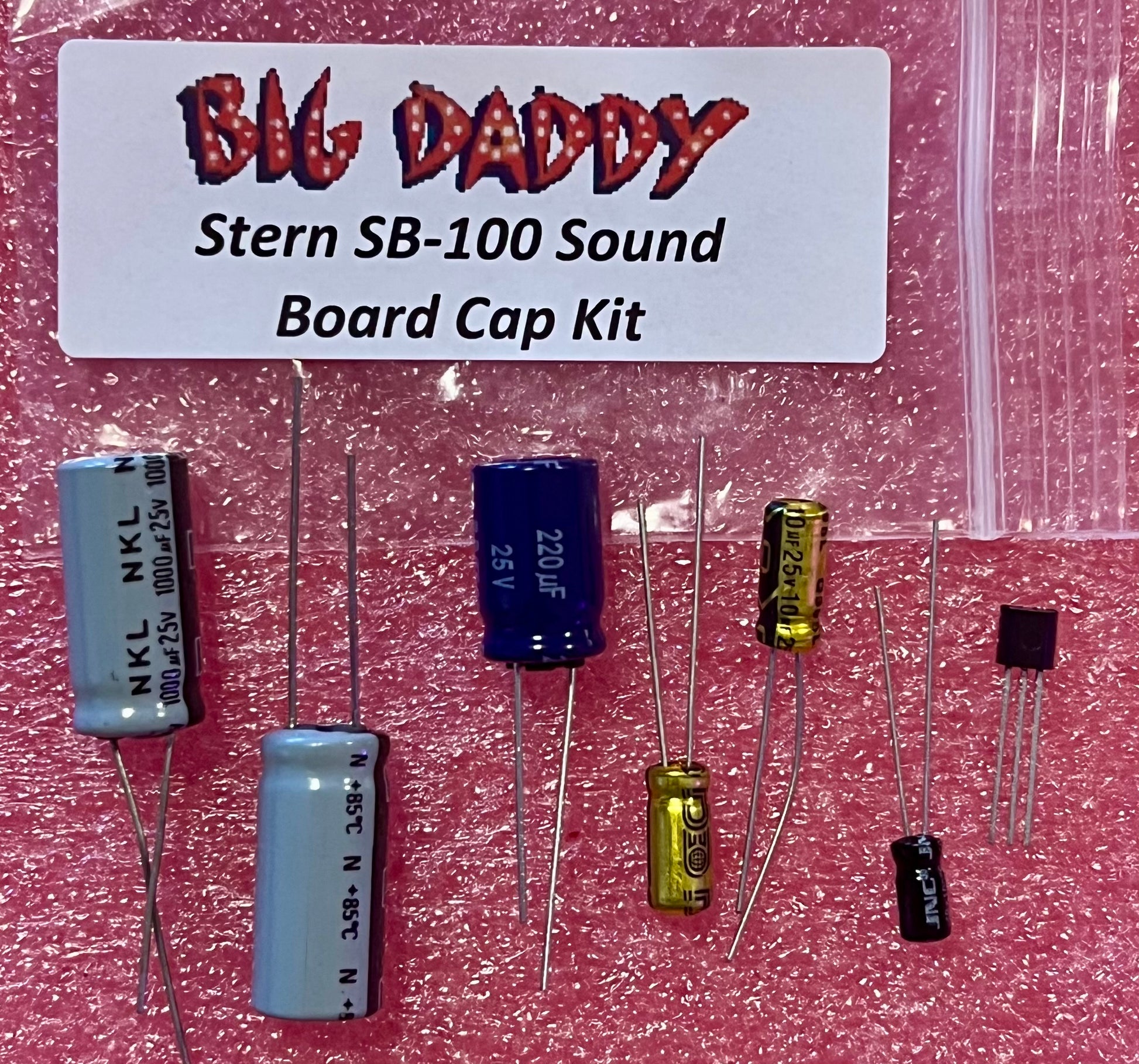

This is a seven piece capacitor and component kit to repair the Stern SB-100 Sound board.  It includes the proper capacitors and a 78L05 voltage regulator which often fails.   Soldering and desoldering required.

Includes:

• (1) 220uf/25V Bi-polar Radial electrolytic capacitor for C47 & C48 (Note 1)
• (2) 1000uf/25V Radial electrolytic capacitor for C51 & C53 (Note 2)
• (1) 47uf/16V Radial electrolytic capacitor for C55
• (2) 10uf/25V Radial electrolytic capacitor for C42 & C52 (Note 3)
• (1) 78L05 Voltage Regulator for U22

Note 1:  C47 & C48 must both be removed and the single 220uf cap installed here.  Your board may be marked with a + sign but the capacitor is bi-polar
Note 2:  Some OEM caps are large and obscure the C51 marking on the board
Note 3:  Later 3rd Generation boards (less populated) do not have C52

Used on the following Stern games:  Cosmic Princess, Dracula, Hot Hand, Lectronamo, Magic, Nugent, Trident, Wild Fyre
