Big Daddy

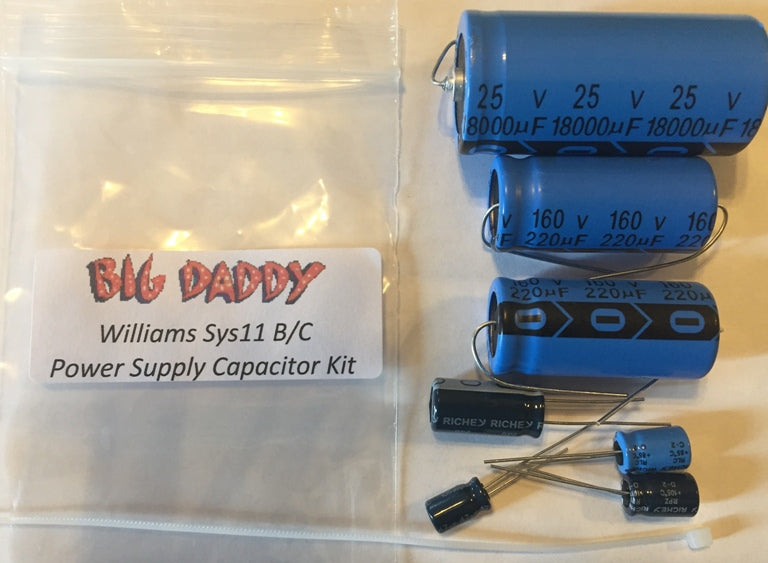

Williams System 11B - 11C Power Supply Capacitor Kit

Williams System 11B - 11C Power Supply Capacitor Kit

Regular price $28.95
Regular price Sale price $28.95
Sale Sold out
Shipping calculated at checkout.
Quantity
Contains all of the electrolytic caps on a Williams System 11B-11C Power Supply board D12246. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now pushing 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Board is designed to take axial or radial caps in some location and kit can vary without notice. Factory board is square, marked 5765-12317-00 on the back and usually has a sticker with the game number & serial number to the right of the heat sink. Some System 11 games in this list may have used an earlier board. Some Dr. Dude's used a later board.

Includes:

  • (2) 220uf/160V axial caps for C1 & C3
  • (1) 100uf/50V HIGH TEMP radial cap for C7
  • (1) 47uf/50V radial cap for C8
  • (1) 1000uf/25V HIGH TEMP radial cap for C9
  • (1) 18,000uf/25V axial cap for C10
  • (1) 330uf/16V radial cap for C12
  • (1) zip tie for C10
