Big Daddy

Williams System 3-6 Sound Board (Type 1) Capacitor Kit

Williams System 3-6 Sound Board (Type 1) Capacitor Kit

Regular price $9.99
Regular price Sale price $9.99
Sale Sold out
Shipping calculated at checkout.
Quantity
Contains all of the electrolytic caps on a Williams Sound board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Please note information varies, not all games and sound board types they use have been confirmed. I've seen a variety of these sounds cards and can identify them as following:

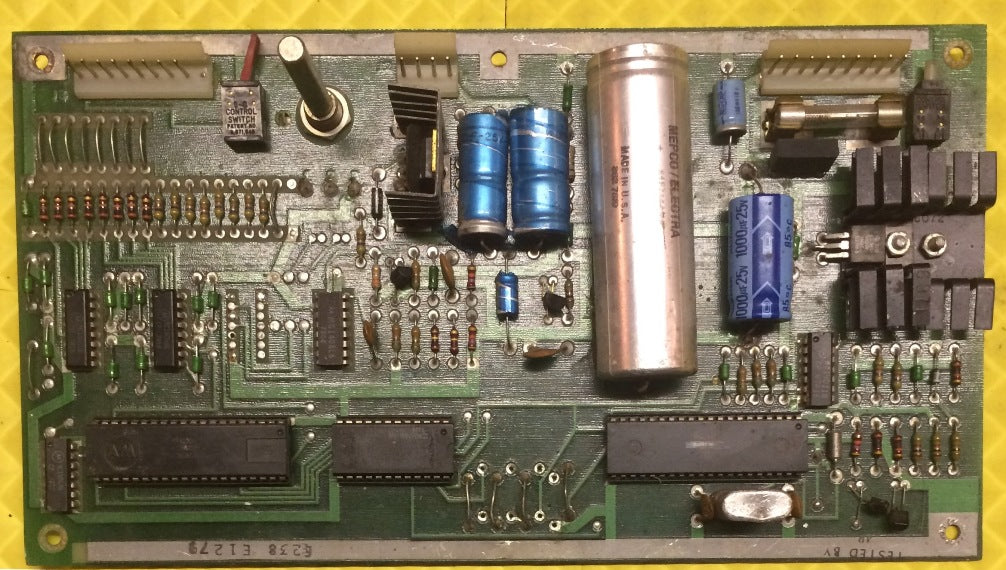

Type 1, 1st Generation. No markings on the board, large capacitor is vertical. Volume control has 2" shaft. Three (3) .156 connectors along the top, one fuse. Top picture to the left.

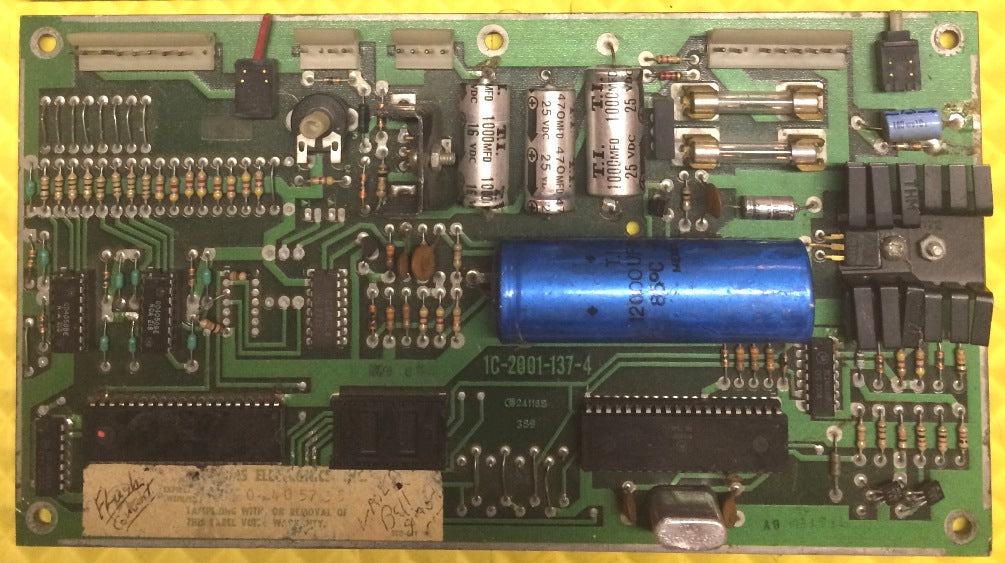

Type 1, 2nd Generation. Marked 1C-2001-137-4 on the board below the large horizontal capacitor. Small knob volume control. Four (4) .156 connectors along the top, two fuses. Bottom picture to the left.

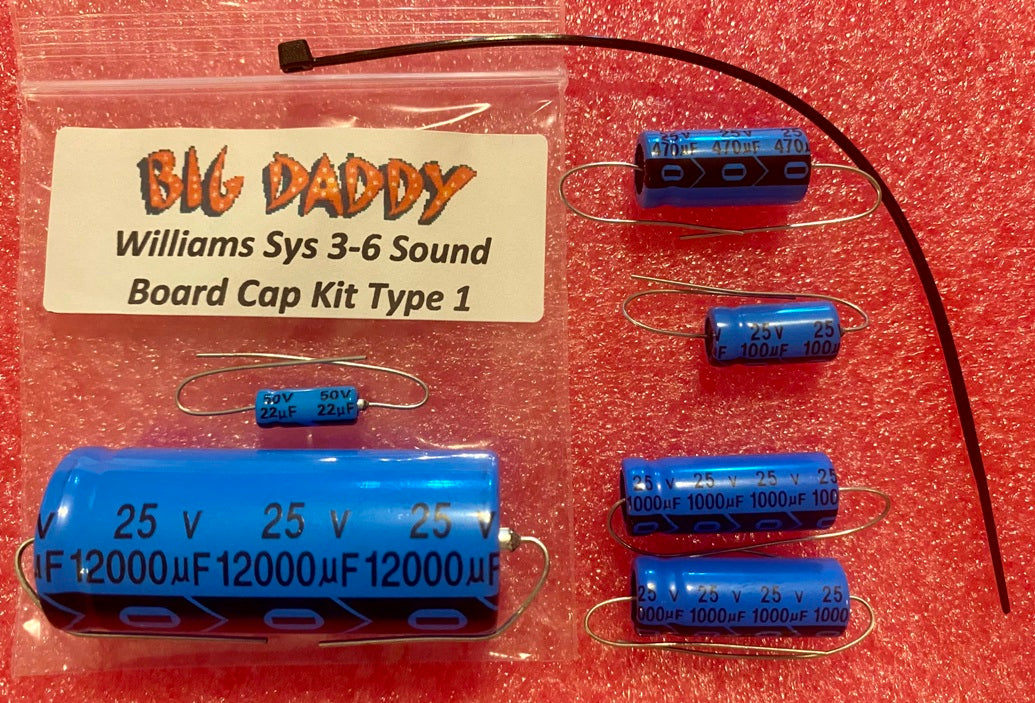

Includes:

  • (1) 22uf/50V axial cap for C10
  • (1) 470uf/16V axial cap for C13
  • (2) 1000uf/25V axial cap for C14 & C30
  • (1) 100uf/25V axial cap for C27
  • (1) 12,000uf/25V axial cap for C29
  • (1) zip tie for C29 (not used on all boards)

Applies to the following games: Contact, Disco Fever, Flash, Phoenix, Pokerino, Scorpion, Stellar Wars, Time Warp, Tri Zone, World Cup
