Big Daddy

Williams System 7-11A Power Supply Capacitor Kit

Williams System 7-11A Power Supply Capacitor Kit

Regular price $27.95
Regular price Sale price $27.95
Sale Sold out
Shipping calculated at checkout.
Quantity
Contains all of the electrolytic caps on a Williams System 7-11A Power Supply board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Factory board is marked 5765-09466-01 on the board and D-8345-XXX on a sticker. Some System 11 games in this list may have used a later Power Supply board

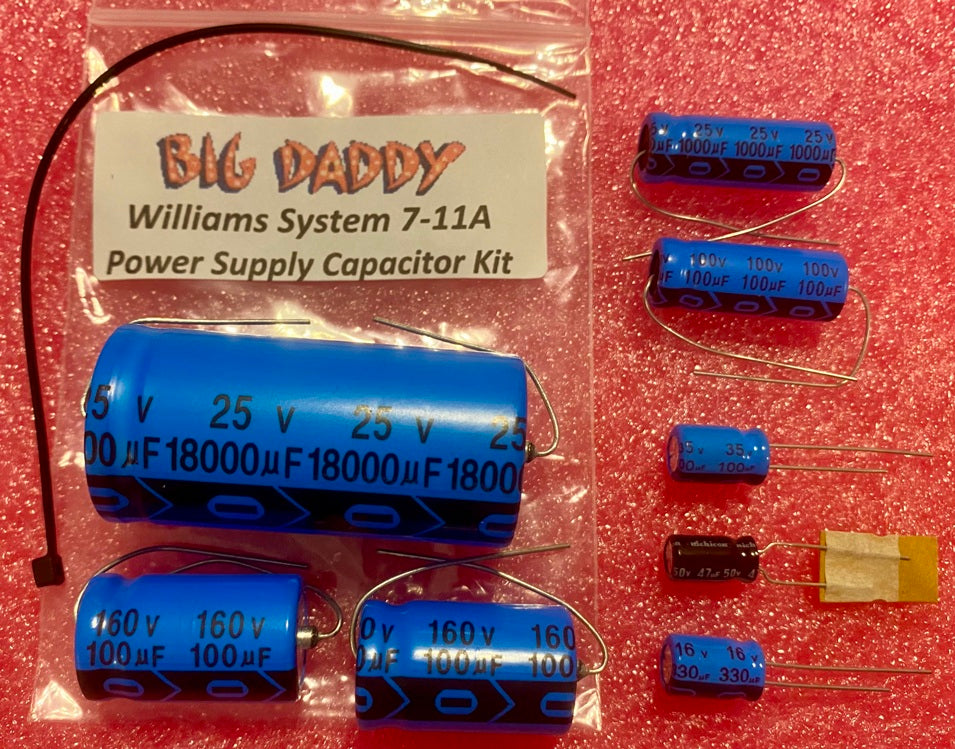

Includes:

  • (2) 100uf/160V axial caps for C1& C3
  • (1) 100uf/100V axial cap for C5 (not used on some boards)
  • (1) 100uf/35V radial cap for C7
  • (1) 47uf/50V radial cap for C8
  • (1) 1000uf/25V axial cap for C9 (some boards use a radial, to mount axial hole is about an inch above)
  • (1) 18,000uf/25V axial cap for C10
  • (1) 330uf/16V radial cap for C12
  • (1) zip tie for C10
